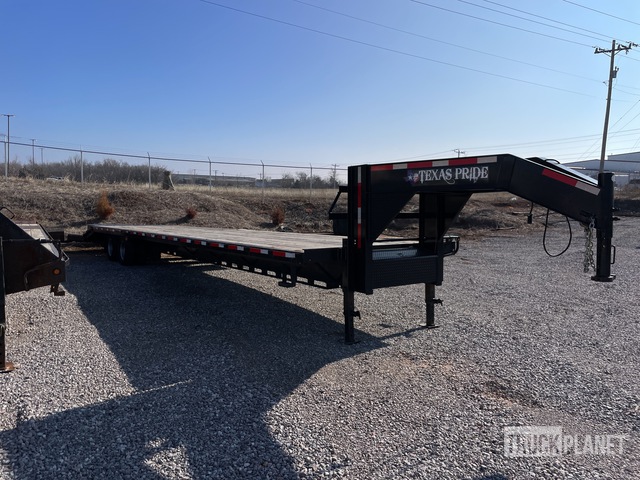

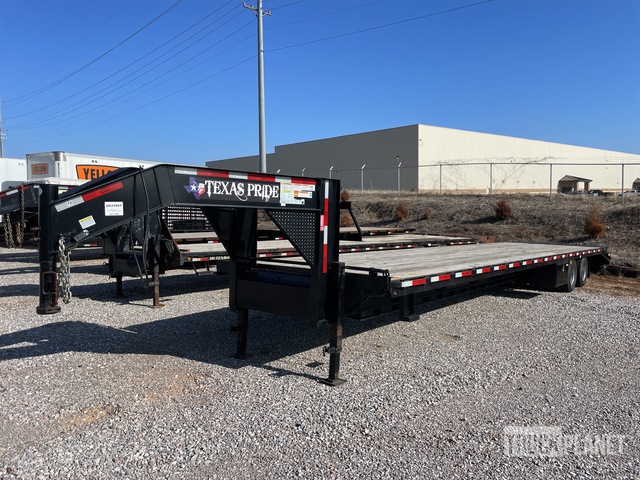

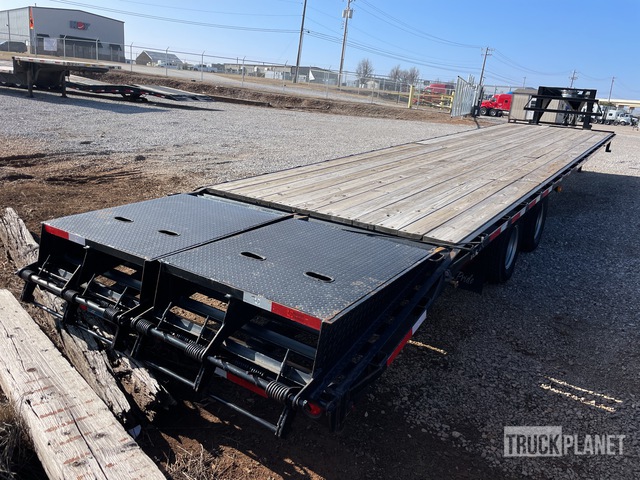

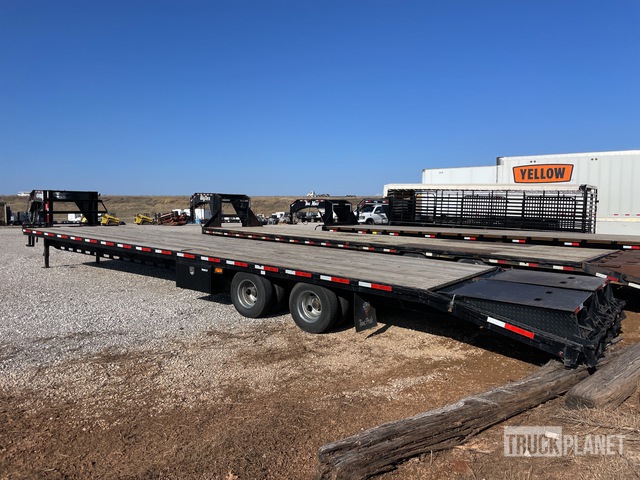

Texas Pride FT835524KGN 40 ft T/A Gooseneck Flatbed Trailer

Available at: Magnolia
Hitches, chains, binders, and ratchet straps available.



26000 lb GVWR, Air Ride Suspension, Electric Brakes, 235/80R16 Tires, 35 ft Deck Length, 98 in Deck Width, 102 in Overall Width

Hitches, chains, binders, and ratchet straps available.

Specifications

G.V.W.R.:
14,000 lbs
EMPTY TRAILER WEIGHT:
4,200lbs (14′ trailer with no additional options)
NET PAYLOAD CAPACITY:
9,800lbs (14′ trailer with no additional options)
AXLES:
Dual 7,000 lb Direct Lube 8 lug (electric brakes on both axles)



SUSPENSION:
Heavy Duty Slipper Spring Suspension



BRAKES:
All wheel electric brakes on all axles (12″ x 2″ brake shoe)



TIRES:
New 16″ ST235/80R16 10ply radial LRE (3,520lbs ea)



WHEELS:
16″ x 6″ eight hole white or silver (based on stock)



MAIN FRAME:
6″ x 2″ x 3/16″ wall rectangular tubing



TONGUE:
8″ channel



TILT FRAME:
3″ x 2″ x 3/16″ wall rectangular tubing



CROSS MEMBERS:
3″ channel



BED FLOORING:
1/8″ thick sheet steel



BED SIDING:
1/8″ thick sheet steel



TIE DOWNS:
Stake pockets & D-Rings



DECK WIDTH:
82″



DECK LENGTH:
12′, 14′ or 16′



DECK HEIGHT:
Approximately 26″



SIDE WALL HEIGHT:
24″ standard



REAR DOORS:
Double swing doors (open like barn doors)



BATTERY:
Group 24 deep cycle marine



CHARGING SYSTEM:
Onboard 110v charger and tester (also charges off truck while being



PUMP:
Electric over hydraulic (1.7 gpm) – power up / gravity down



CONTROLLER:
15′ corded remote control



TOOLBOX:
Front locking tool box – contains battery and pump



HYDRAULICS:
Multi stage trunnion mount telescopic cylinder



COUPLER:
4 hole adjustable height 2 5/16″ gooseneck ball



SAFETY CHAINS:
Two heavy duty safety chains



JACK:
12,000 lb drop leg jack



FENDERS:
14ga heavy duty tread plate



LIGHTING:
All flush mount or recessed lifetime LED stop / turn / clearance lighting



WIRING:
U.S. made sealed modular wiring harness



SAFETY EQUIPMENT:
DOT required emergency break-a-way kit and conspicuity tape & Prop Rod



FINISH:
Fully primed and painted with automotive grade acrylic enamel
