The D6228-3 Fiberglass Three-Section 28-foot Extension Ladder has non-conductive rails making this ladder ideal for working near electricity. With a duty rating of 300lb, the ladder is durable and long-lasting. The exclusive Alflo® rung joint means Twist-Proof® performance on the job. The Traction-Tred® D rungs are slip-resistant and the side rails are interlocking. The dual action feet are for use on hard or penetrable surfaces and swivel easily. The base and fly sections separate easily to use the base section as a single ladder. The durable rail shield bracket and shoe help protect the bottom of the rail. The fly section rails are pre-pierced at the top for easy field installation of accessories.

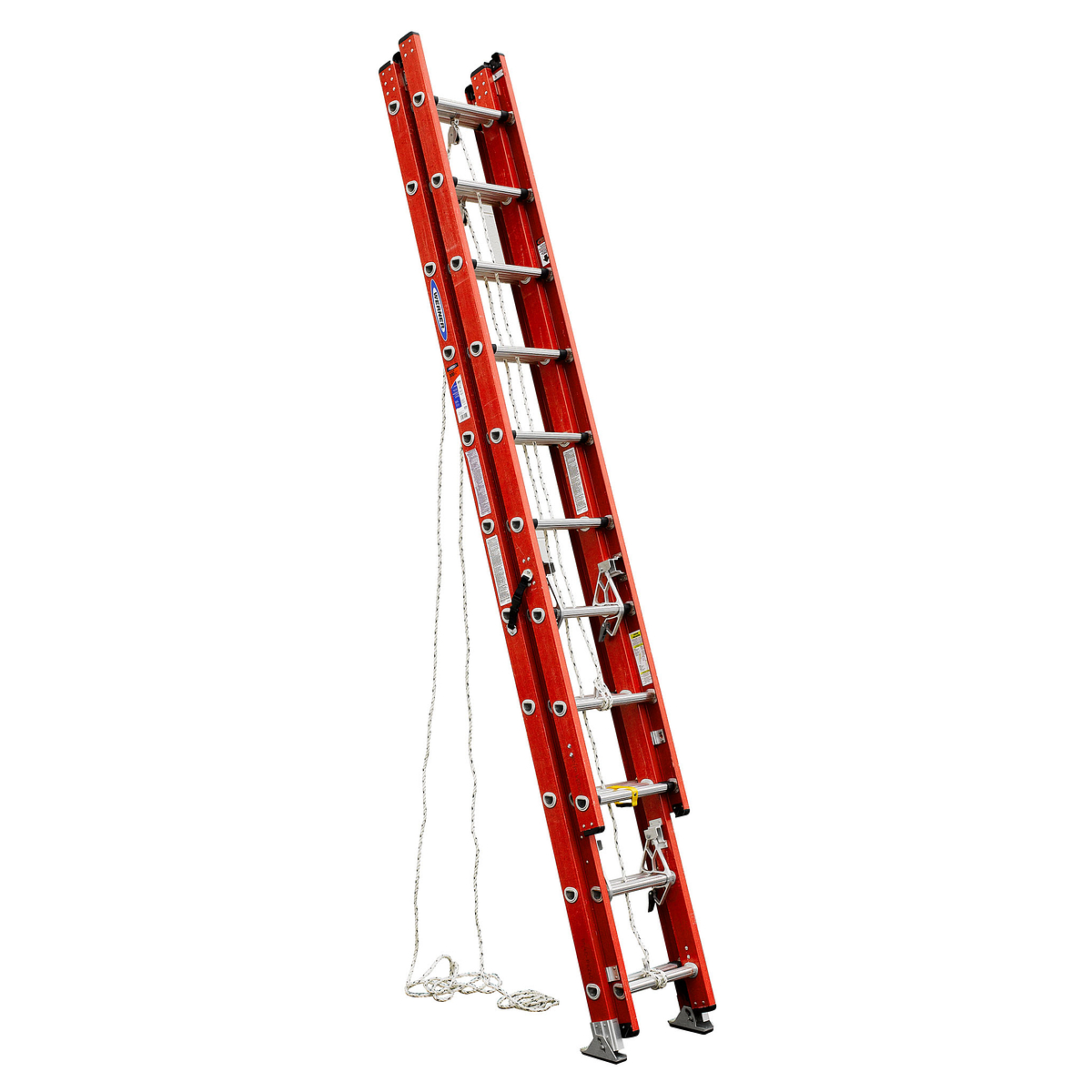

Werner 28ft Type IA Fiberglass D-Rung Extension Ladder – D6228-3
Available at: Houston
- Compact 3 section design is 11 feet 4 inches when closed. Conventional 28 feet extension ladder is 14 feet 3 inches when closed.
- Exclusive Alflo® rung joint means Twist-Proof® performance
- 1.63-inch slip-resistant Traction-Tred® D-rungs
- Interlocking side rails with internal rail guides on bottom of fly section securely connect rails
- External guides at top of base section securely interlock rails
- Heavy duty extruded rung locks are spring loaded to operate smoothly
- Combination rail shield bracket and shoe with SHU-LOK® and slip-resistant pad
- Molded rung braces on bottom step for increases durability
- Mar-resistant molded end caps
- Ladder is considered 31 feet by ANSI standards
- Ladder extends to 25-foot working height, same as D6228-2
- 2 rope system with smooth operating pulley and polyester rope
- Slip resistant shoe with Shu-Lok® foot

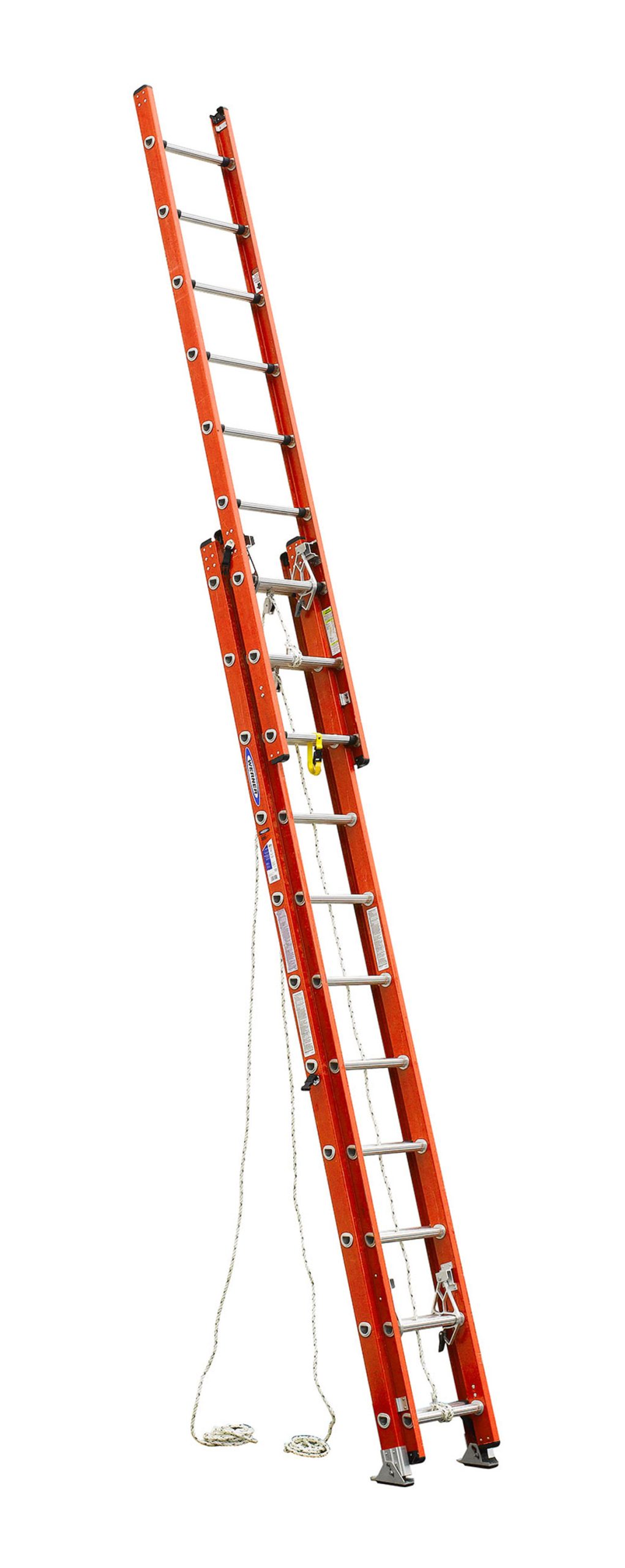

- Model D6228-3 approx. closed length 136.4 inches, approx. extended length 300 inches
Specifications
| Style | Multi-Section |
| Size | 28ft |
| Type | Type IA Duty Rating |
| Load Capacity | 300lb |
| Material | Fiberglass |
| Certifications | ANSI A14.5-2007,OSHA |
| Werner Benefit | Compact 3 section design is 11ft 4in when closed. Conventional 28ft extension ladder is 14ft 3in when closed |
| Unique Features | Works Around Electricity |
| Color | Orange |
| Foot Design | Shu-Lok ®, |
| Max. Load | 300lb |
| Number of Sections | 3 |
| Sections x Rungs | 3 x 9 |
